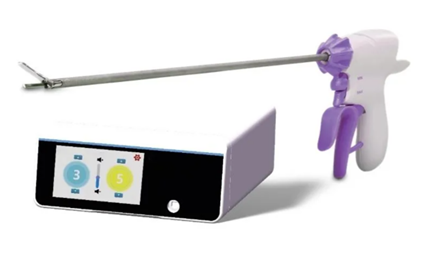

Ultrasonic scalpel system

Product description

①Knife shim

②The main working surface is blunt-edged,used for cuting and stopping bleeding.

③The convex surface can be used for stopping bleding.

④The top o the blade can aid in piercing or pinpoint stopping of bleeding.

⑤The sharp edge can be uilized for backcuting.

Steering Knob Work Head End Anti-Glare Shaft MAX Manual Switch Movable Wrench

●Appropriate

The drive handle can be reused, which reduces the cost of single-use. A modular design for the drive handle minimizes maintenance expenses. An integrated torque wrench also helps to reduce inventory costs.

●Efficient

The device operates at a frequency of 55.000 hertz allowing for simultaneous bleeding control and cutting. This ensures a seamless workflow for surgical procedures. The multi-functional headpiece design facilitates cutting, bleeding cessation, graspng, and separation, all executed in one fluid motion. The enhanced ergonomic design provides the best operating experience for chinese surgeons.

●safety

The principles of mechanical energy ensure that electrical currents do not cause any harm to tissues. The risk of thermalinuury to surrounding anatomical structures is reduced, ensuring safety during surgery. Additionally, the curved blade surface and low mist design improve visibility during the operation.

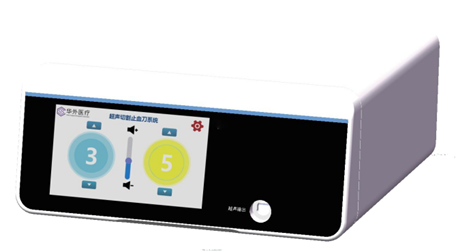

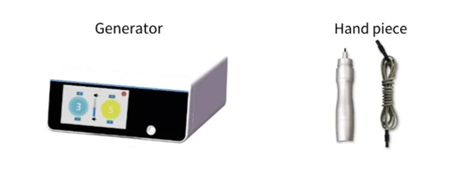

Ultrasonic Surgical Generator

CSUS5000 Ultrasonic Scalpel System is applicable to incision of soft tissues that need to control bleeding and minimize thermal damage. It is not applicable to bone resection, tubal ligation and neurosurgery.

Advantages

1. Suitable: The driving handle is unlimited, which reduces the cost of single use. The detachable driving handle design reduces maintenance costs. The integrated torque wrench reduces inventory costs.

2. Safety: The mechanical energy working principle prevents the damage of electric current to tissues; the smaller lateral thermal damage ensures the safety of operation near important tissue structures; the curved blade surface combined with the low mist design improves the clarity of the operation field of view;

3. Efficient: 55,000 Hz working frequency, cutting and hemostasis are completed simultaneously; multifunctional head design allows cutting, hemostasis, grasping, separation and other operations to be completed in one go; upgraded ergonomic design provides Chinese surgeons with the best operating experience.

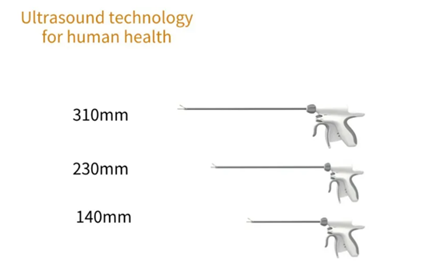

Ultrasonic Surgical Devices

Ultrasonic Shears- H Series is applicable to incision of soft tissues that need to control bleeding and minimize thermal damage.It is not applicable to bone resection, tubal ligation and neurosurgery.

Advantages

1. Blade gasket

2. Blunt surface, main working surface, used for cutting and hemostasis

3. Convex surface, can be used to stop bleeding

4. The top of the knife helps to punch or stop bleeding

5. Sharp surface, can be used for back cutting

6. Anti-glare shaft, working head end, steering knob, manual switch, adjustable wrench

Application

Suitable for cutting and hemostasis in open and laparoscopic surgery in general surgery,thoracic surgery, gynecology,urology,pediatrics.etc.

Product parameters

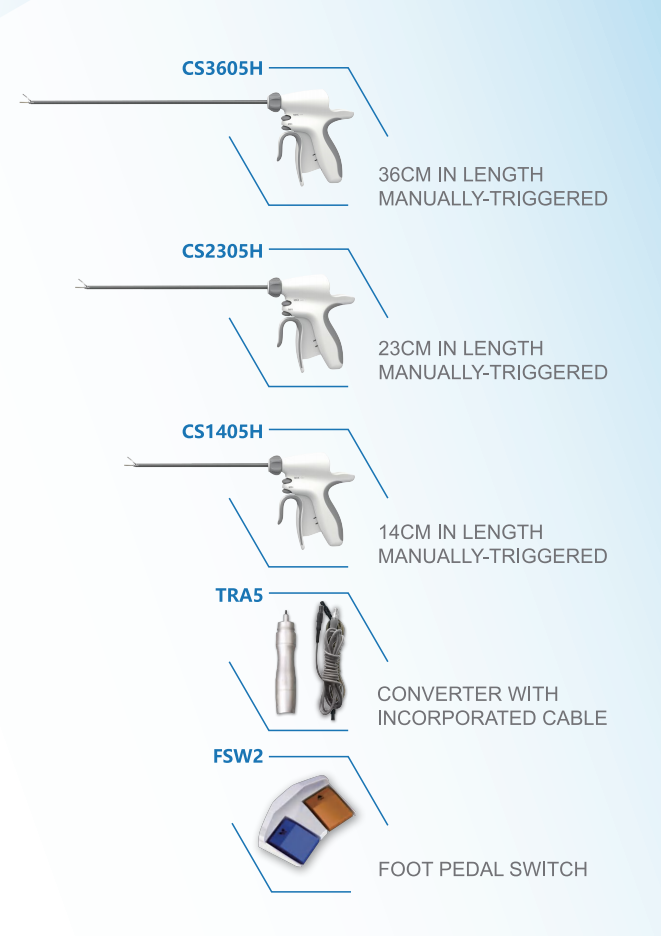

	Product Description Details-Cutter
	CSUS5000	Ultrasonic cutting hemostasis system host (including foot pedal, test head)

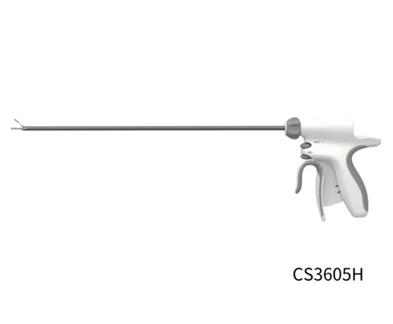

	CS3605H/P	5mm curved multi-purpose cutter, grip type, 36cm rod length, hand-controlled trigger
	CS2305H/P	5mm curved multi-purpose cutter, grip type, 23cm rod length, hand-controlled trigger
	CS1405H/P	5mm curved multi-purpose cutter, grip type, 14cm rod length,
	TRA5	Hand-controlled trigger drive handle (with cable)
	FSW2	Firing foot pedal
