Product details

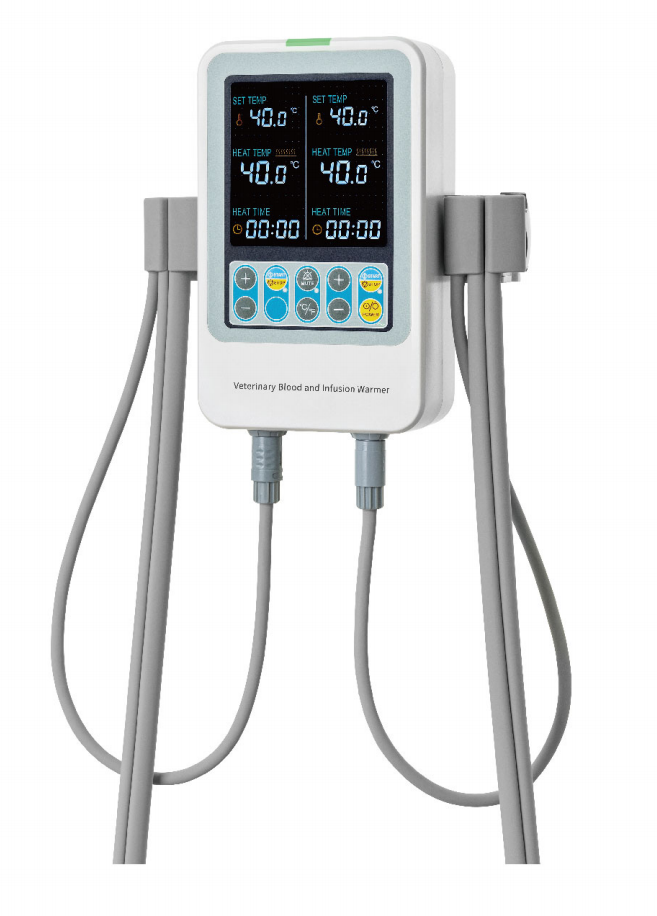

Veterinary Blood and Infusion Warmer Features
Veterinary Blood and infusion Warmer is to warm the blood orfluid and to relieve the patient' s hyperthermia; it is widely used before operation, during operation and after operation in lCU,NiCU, Pediatric Dept, Emereency Dept. and Outpatient Dept, for heatine blood orinfusionDouble channel can work at the same time. iferent kinds detachable heating protiles, direct intertace and simple operation makes it uselfriendly.
Multiple Temperature ControlProtection Technology | Hardware and software temperature controlprotection to ensure the effective and safe heating. |
Medical Heating SiliconeHeating Profile | The heating profile makes the heat reach the patientdirectly and effectively. |

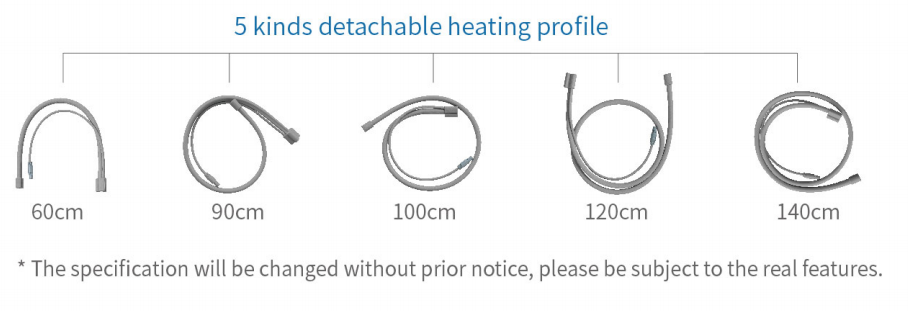

Different Kinds HeatingProfiles | IV tubes with diameter 3.5, 5, 7mm connection toheating profile 60,90,100,120,140cm optional. |
Dry Heating | Dry flow process, easy installation, fast heating |
Display | Display the preset temp., heating temp., time, alarmmassage, working status. |
Veterinary Blood and Infusion Warmer Specification
Item | Specifification |
Temperature Setting | °C:32°C~42.0℃; °F:86.9°F~107.6°F |
Temperature Deviation | °C:≤±1°℃;°F:≤±1.8°F |
Temperature Increment | ℃：0.1℃ ℉：0.2℉ |
Optional Unit | ℃、℉ |
Warming Up Time | <4min |
Overheat Protection | 50+-5℃， hardware and software protection |
Alarm | Overheat, low temperature, system error,door open, warming up alarm. |
Blood and IV Sets | Standard single use PVC blood/lV tubes(diameter: 3.5-7mm, applied differentheating profiles) |
Display | 72x72mm |
Heating Way | Dry silicone heating profile |
Mute Time | 2mins |
Heating Profiles | IV tubes with diameter 3.5-7mm connectionto heating profile 60, 90,100,120,140cmoptional |
Heating Time | 00h00min~99h59min |
Power supply | 100~240V,50/60HZ |
Power Consumption | 80VA |
Operation Environment | Temp.:+5°C-+30°C; Relative Humidity:20%-93%;Atmosphere:70.0kPa-106.0kPa |
Transportation and Storage Environment | Temp.:-20'C-+55C: Relative Humidity:10%-95%; Atmosphere:50.0kPa-106.0kPa |
Degree of Protectionagainst Ingress of Liquids | IPX4 |
Degree of Protectionagainst Electric shock | Class ll, Type CF |
Working Mode | Continuous heating |
| Dimension | 155*110*170mm |
| Weight | 1.2kg( 1pc 120cm heating profile included) |
