Product details

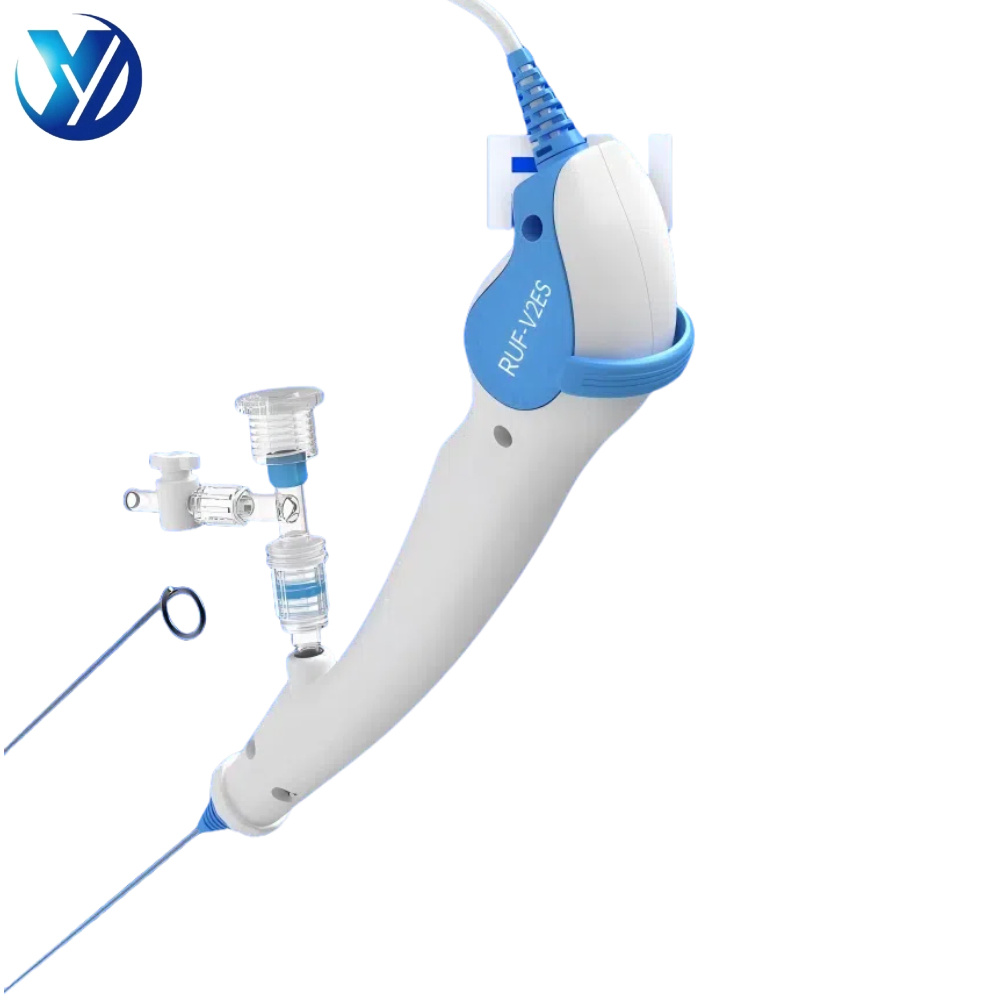

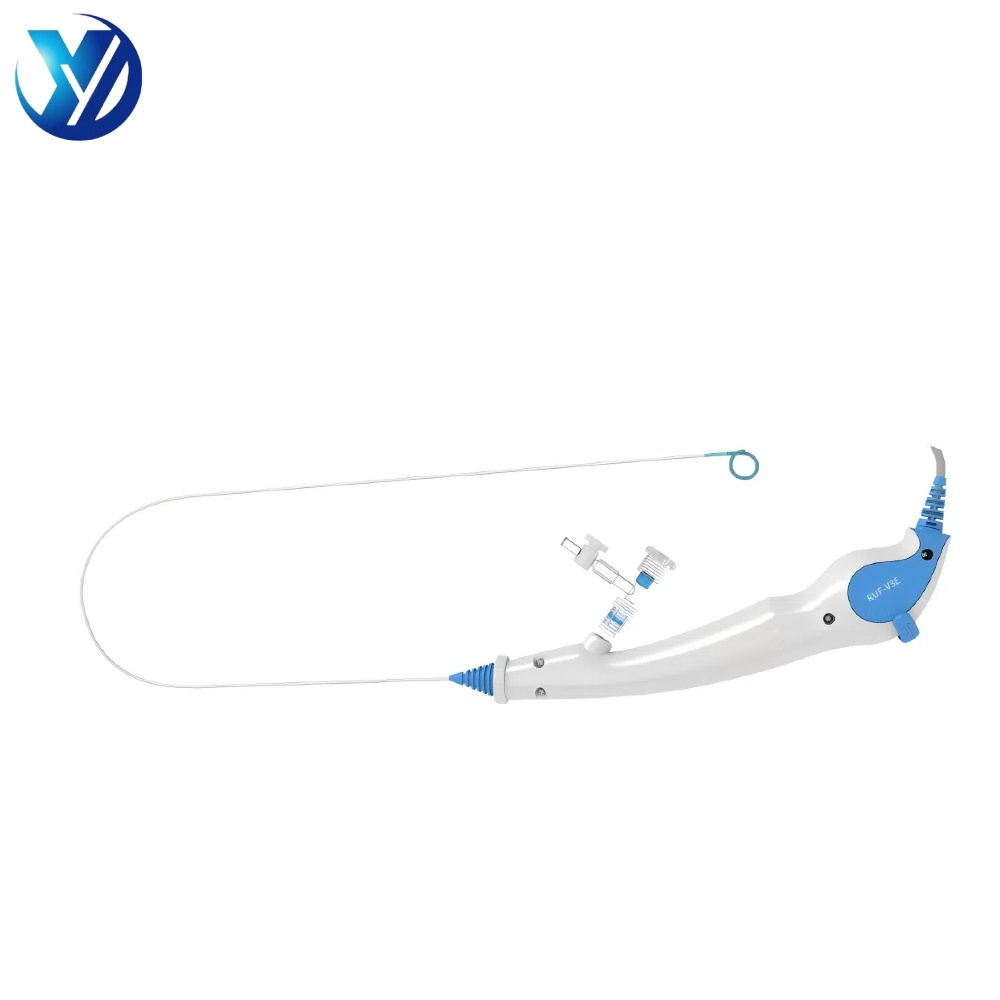

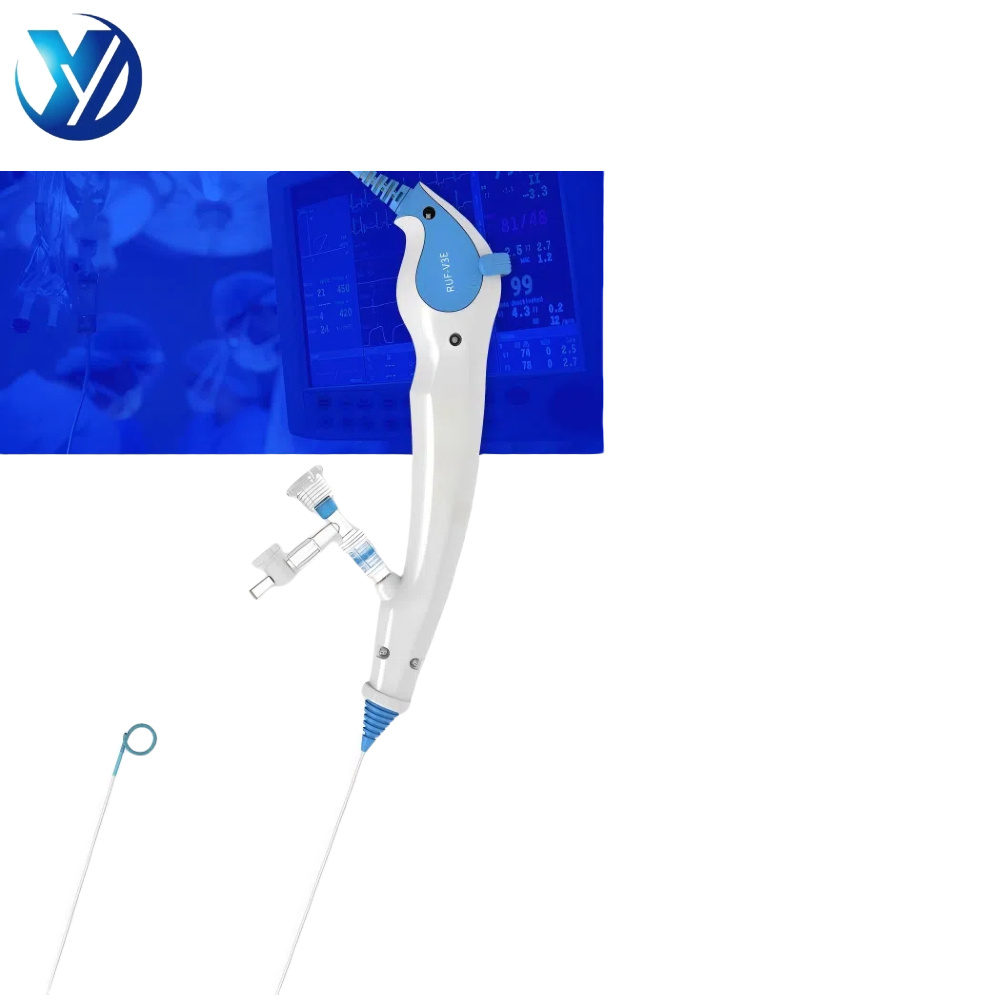

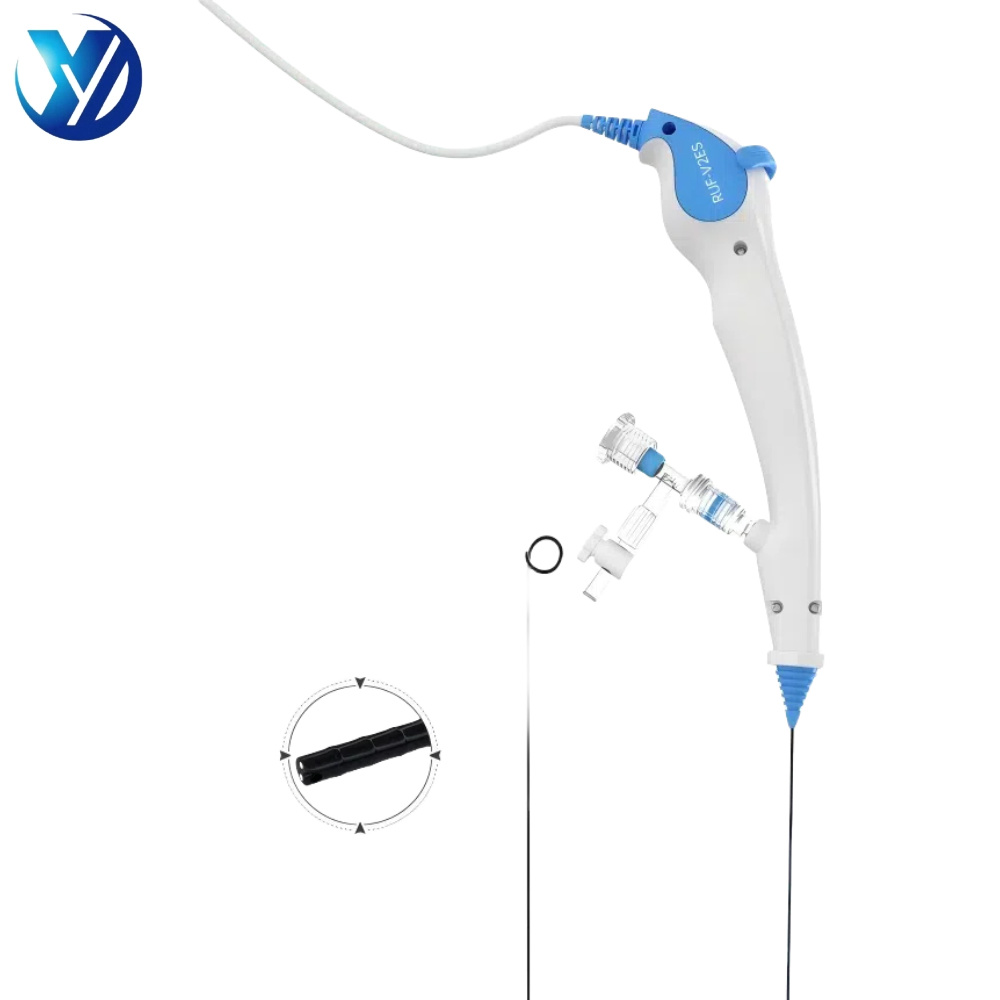

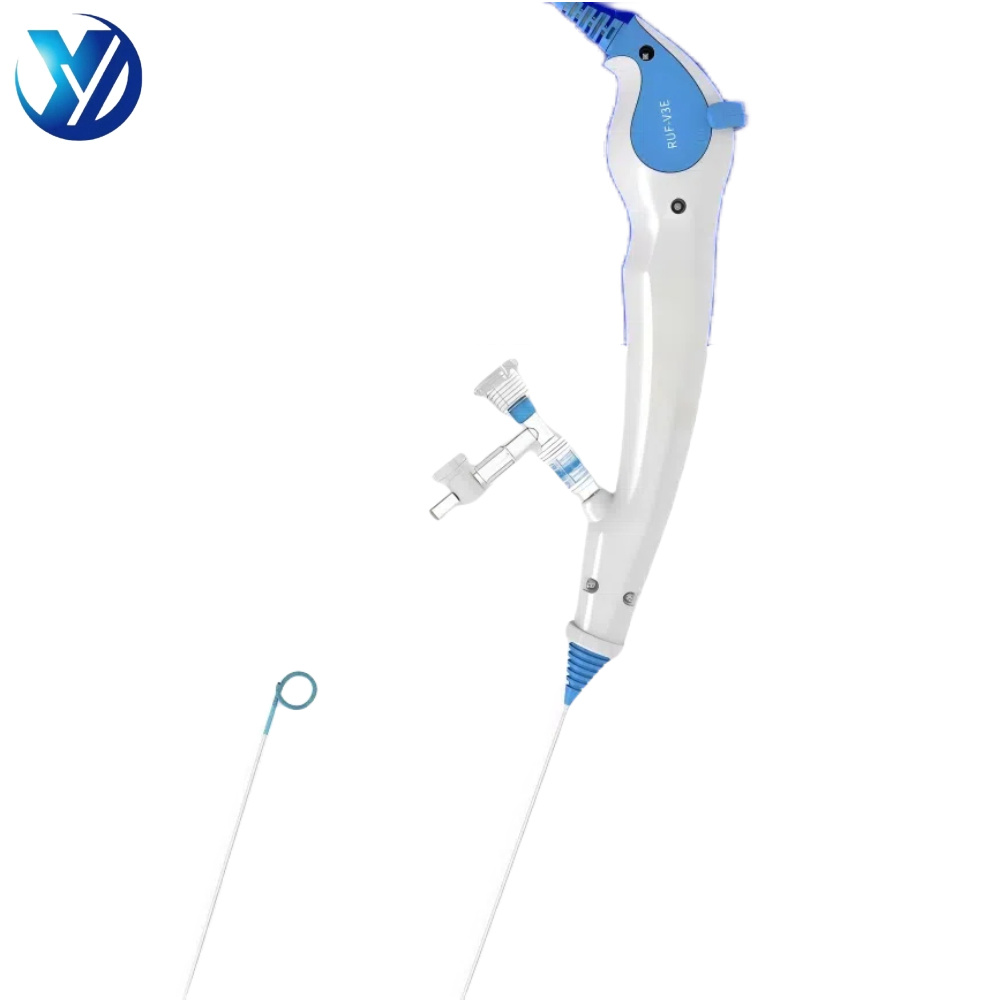

Simplified version of Disposable Digital Flexible Ureteroscope main part produced by Reborn Medi.cal adopts one of two color injection molding to achieve seamless docking of the overall structureThe handle adopts full curved arc design, and its color is ivory white and lake blue. The distance be-tween the holding parts of the handle is 110mm, which is ergonomic and comfortable to hold. Theangle plate is designed with damping, and the tip bends freely. The angle plate is gently placed andthe tip has no angle rebound, which reduces the work intensity of the doctor and can achieve accu-rate positioning.
The distal end can bend 275 degrees up and down, 90 degrees left and right. The instrument chan-nel comes with optical fiber, stone retrieval basket lock and one-way valve. Doctor can fix thelength of optical fiber and stone retrieval basket ,and adjust the water flow volume to ensure thesurgical field of vision and stone removal! The total weight of the handle is 191.8g (including thehandle cable insertion tube), so that you can easily complete each operation and protect the healthof your patients.
Inner diameter of instrument channel
Long side ≥ 1.35mm
Short side ≥ 0.9mm
Outer diameter of flexible insertion tube
2.33mm +10%
Outer diameter of rigid distal end
2.6mm+5%
 | Optical fiber locking port |
| Three-way valve assembly | |
| Water filling nozzle with valve | |
| Instrument channel locking port | |
 | Left and right rotation controller of distal end (left and right 90°) |
 | Up and down 275° |
