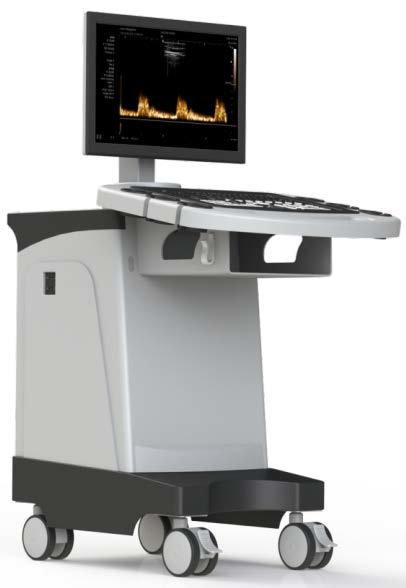

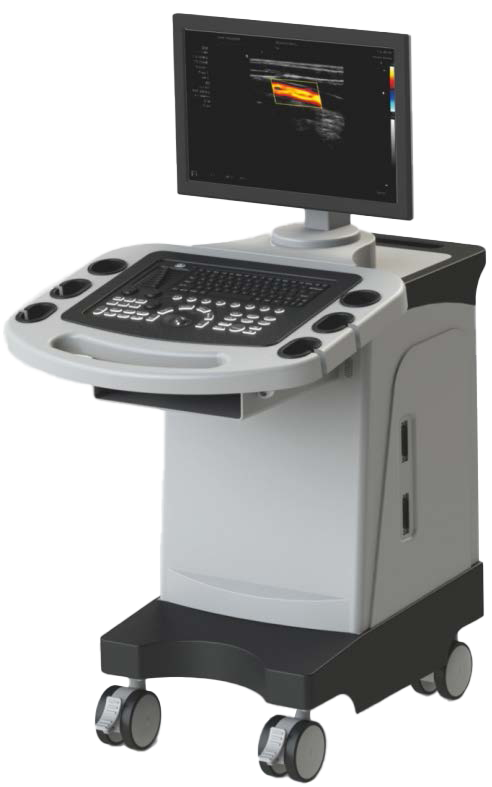

E2000 Color Doppler Ultrasound Diagnostic System

Parameters:

•Display:19 inch LCD screen

•Scanning depth:2-280mm

•Operating frequency range: 2.0-12.0MHz

•Probe interface: 2 probe connectors

•Dynamic range: 80~280d B adjustable;

•Gray level:256; Display depth:≥280mm;

•Display modes: B,B/B,4B,M,CFM,CMF/B,PDI,PW,THI;

•3D mode(Optional)

•Pseudo-color processing:16 pseudo-color coding options;

•Solid state disk storage capacity ≥128G;

•Interface:HDMI,VGA, USB, DICOM interface.

•Optional probe: convex array, high frequenc y linear array, cavity,micro convex, rectal ;

•Input voltage:100-240V,50/60Hz(built-in 19V.5.8A,DC adapter;12V,2A,DC adapter)
