Product details
Lead | Standard 12 leads |
Sampling mode | Simultaneous 12 leads acquisition |
| Sampling rate | 1000Hz |
A/D Converter | 24bits |
Frequency response | 0.05～160Hz (-3db) |
Operation mode | Manual, Auto, Rhythm, 1 channel 1 minute |
Filter | AC Filter: 50 Hz / 60Hz EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz DFT filter: 0.05Hz/0.5Hz |
CMRR | ≥100dB (add AC filter) |
Input mode | Floating and defibrillation protection |
Input Impedance | ≥50MΩ (10Hz) |
Input circuit current | ≤0.05μA |
Input dynamic range | ±10mVp-p |
Patient leak current | ＜10μA |
Calibration voltage | 1mV±2％ |
Polarizing voltage | ≥±300mV |
Time constant | ≥3.2s |
Paper specification | 210mm (W)*30m(L) |
Recording mode | Thermal printing system |
Noise level | ＜15μ Vp-p |
Memory | 1000 cases |
Threshold | ≤20μV |
Wave Gain/Sensitivity | 2.5mm/mV，5mm/mV，10mm/mV，20mm/mV (standard sensitivity: 10mm/mV) |
Wave/ Paper speed | 12.5mm/s,25mm/s,50mm/s（±3％） |
AC | 100V~240V(50/60Hz) |
DC | 14.4V, 2500mAh, 36.00Wh (Built-in rechargeable Li-ion battery) |
Specifications

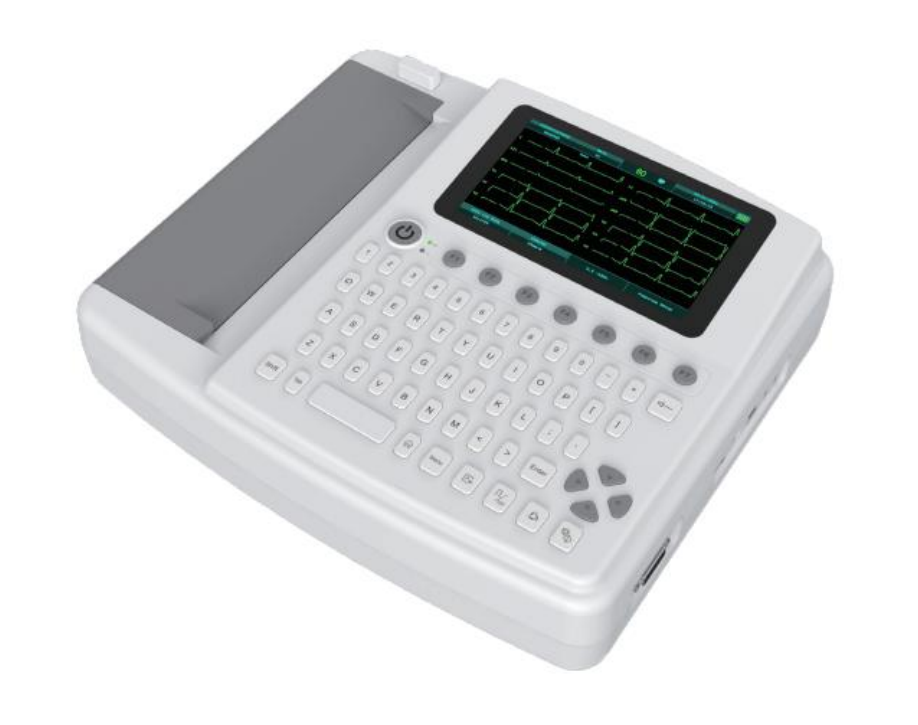

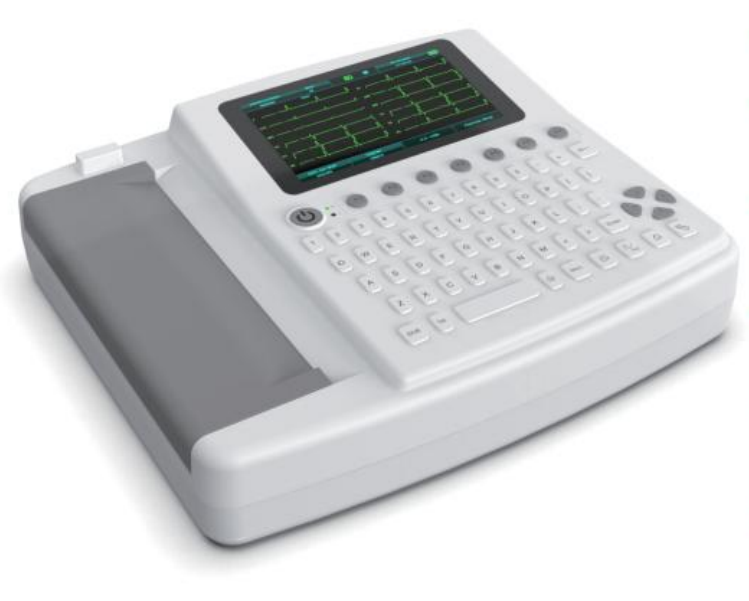

- 7 inch high resolution color touch screen
- Full alphanumeric keyboard with shortcut keys, efficient in operation.
- Simultaneous 12 leads ECG acquisition and display.
- Automatic ECG measurements and interpretation.
- Internal storage up to 1000 cases, conve-nient for case review and statistic.
- Built-in rechargeable lithium high capacity battery.
- ECG data can be transmitted to PC via USB. ECG reports can be saved, opened, in PC via ECG playback software.
