Product details
Features

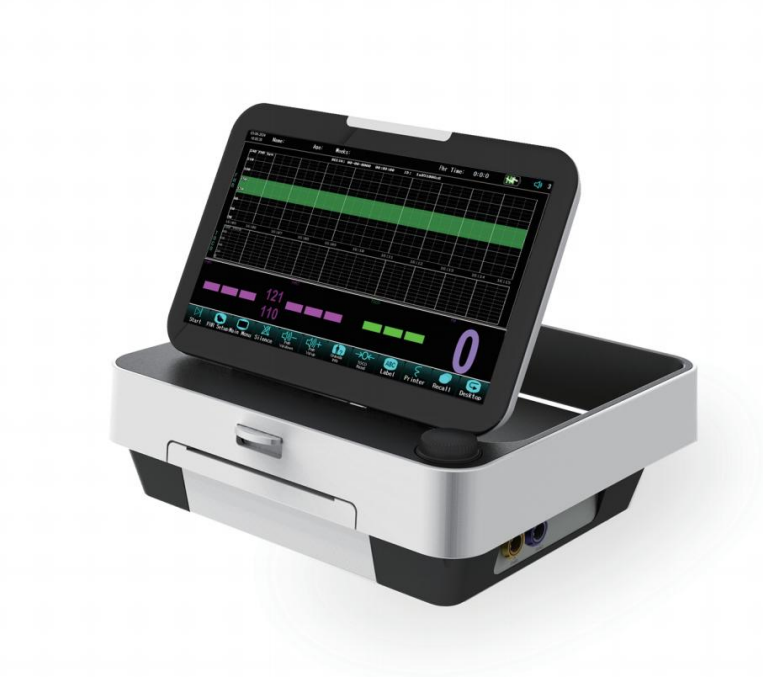

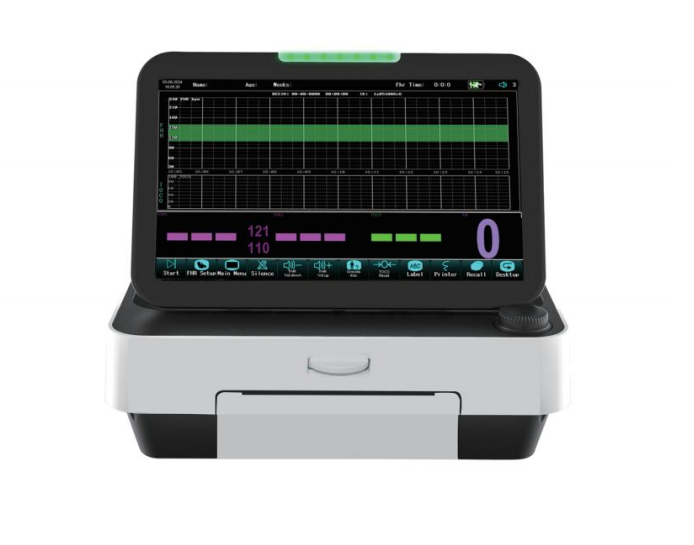

- 10"LCD touch screen, folding 60 degree
- High sensitivity,10 chips 1MHz digital pulse transducer
- LE MEDICAL" DSP technology
- Twins monitoring function option
- Display waveforms and digital simultaneously
- FHR upper and lower limit alarm
- 6 kinds of printing mode, print paper size 112 mm
- Built-in high resolution and long-life themmal printer
- Automatic diagnosis, refoming Fischer score
- Doctor event mark, built-in expert dictionary
- 1200 hours data and waveform storage and review
- Wire connect to central monitoring system
Technique Specification
FHR
Ultrasound frequency:1.0MHz
FHR range: 40-240bpm
Ultrasound intensity:<5mW/c㎡
Resolution:1 bpm
Accuracy: +2 bpm
TOCO
Range:0-100%
Resolution:1%
Fetal Movement
Manual fetal movement mark
Power Supply
AC 90V-240V,50/60 Hz
Battery: 7.4V 4000Mah
