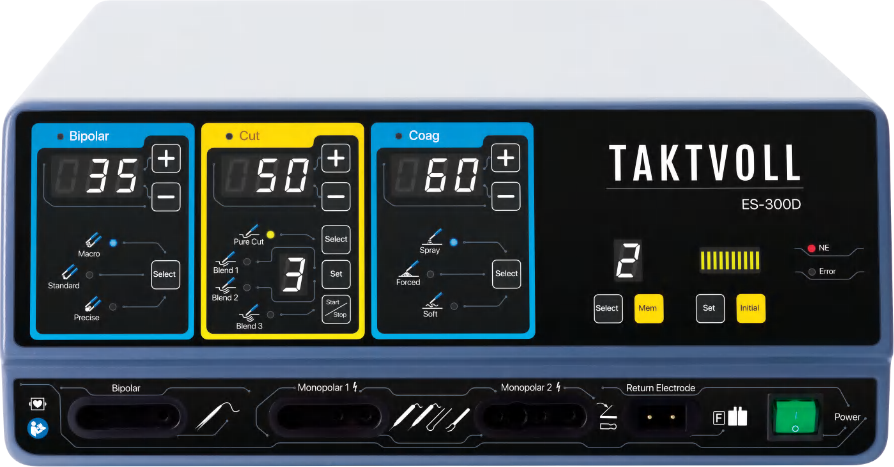

Product details
For Endoscopy, Gastroenterology, Gynecology, Urology, Pediatrics and Other Departments.
Main Feature
– Two Monopolar Output Ports
– 4 Monopolar Cut: Pure Cut, Blend 1、2、3
– 3 Coag: Spray Coag, Forced Coag, and Soft Coag
– 3 Bipolar Output: Macro, Standard, Precise
– CQM Contact Quality Monitoring System
– Simultaneous Cut and Coag
– Electrosurgical Pens and Foot Switch Control
– Recently Mode, Power and Other Parameters
– 9 Sets of Memory Modes
– Quick Adjustment of Power and Volume
– Cut and Coag in an Intermittent Manner
Product Specifications
|
Mode |
Max Output Power(W) |
Load Impedance(Ω) |
Modulation Frequency (kHz) |
Max Output Voltage (V) |
Crest Factor |
||
|
Monopolar |
Cut |
Pure Cut |
300 |
500 |
-- |
1300 |
1.8 |
|
Blend 1 |
250 |
500 |
20 |
1400 |
2.0 |
||
|
Blend 2 |
200 |
500 |
20 |
1300 |
2.0 |
||
|
Blend 3 |
150 |
500 |
20 |
1400 |
1.9 |
||
|
Coag |
Spray |
120 |
500 |
12-24 |
4800 |
6.3 |
|
|
Forced |
120 |
500 |
25 |
4800 |
6.2 |
||
|
Soft |
120 |
500 |
20 |
1000 |
2.0 |
||
|
Bipolar |
Macro |
150 |
100 |
-- |
500 |
1.6 |
|
|
Standard |
100 |
100 |
20 |
700 |
1.9 |
||
|
Fine |
50 |
100 |
20 |
400 |
1.9 |
||

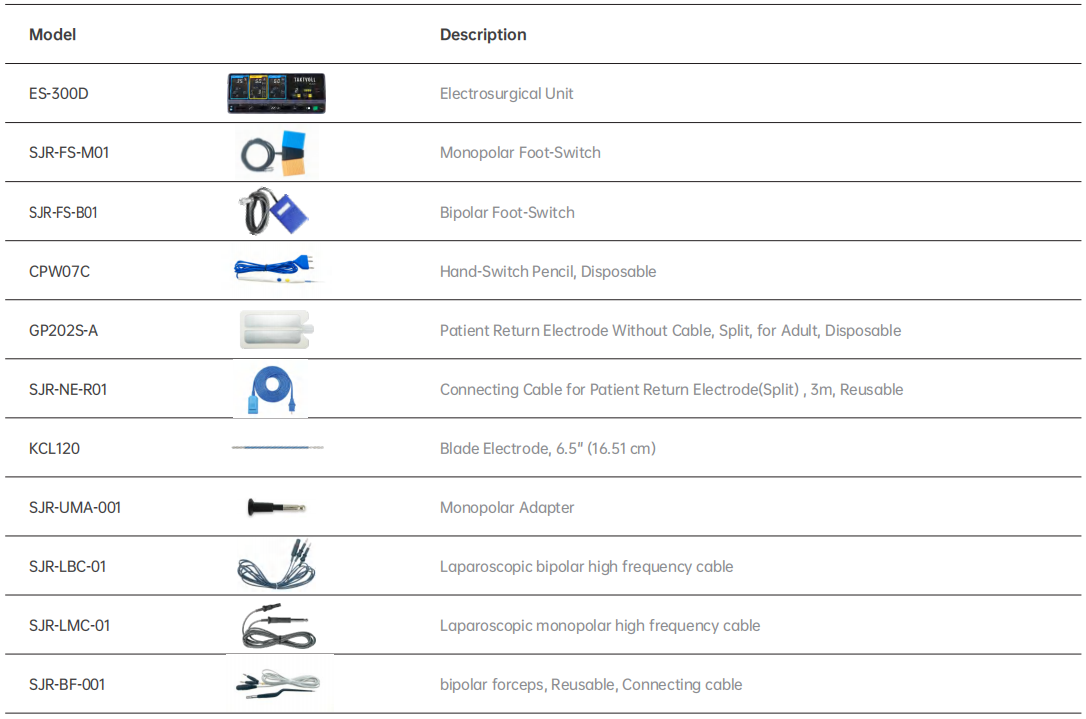

Ordering Information
