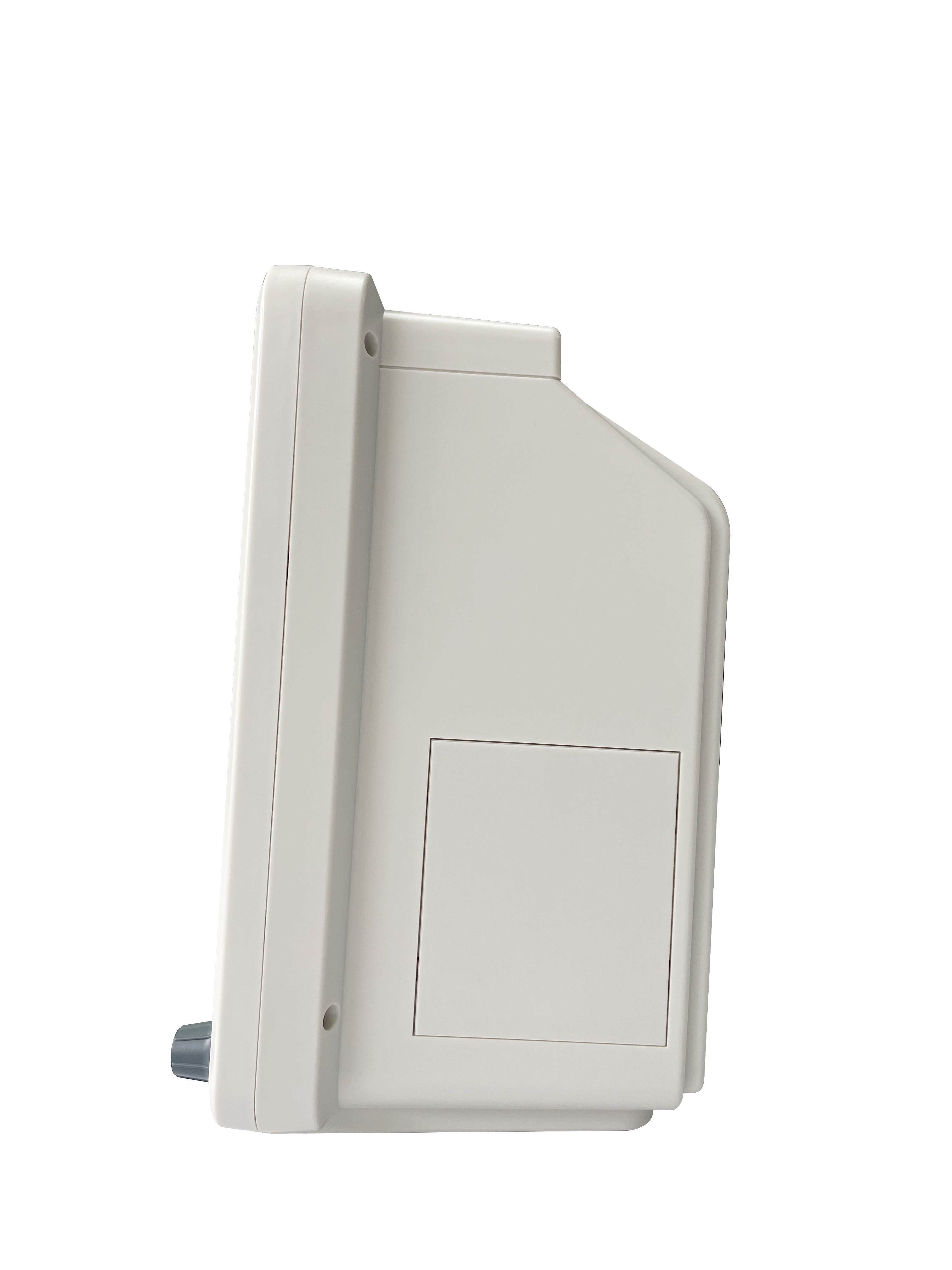

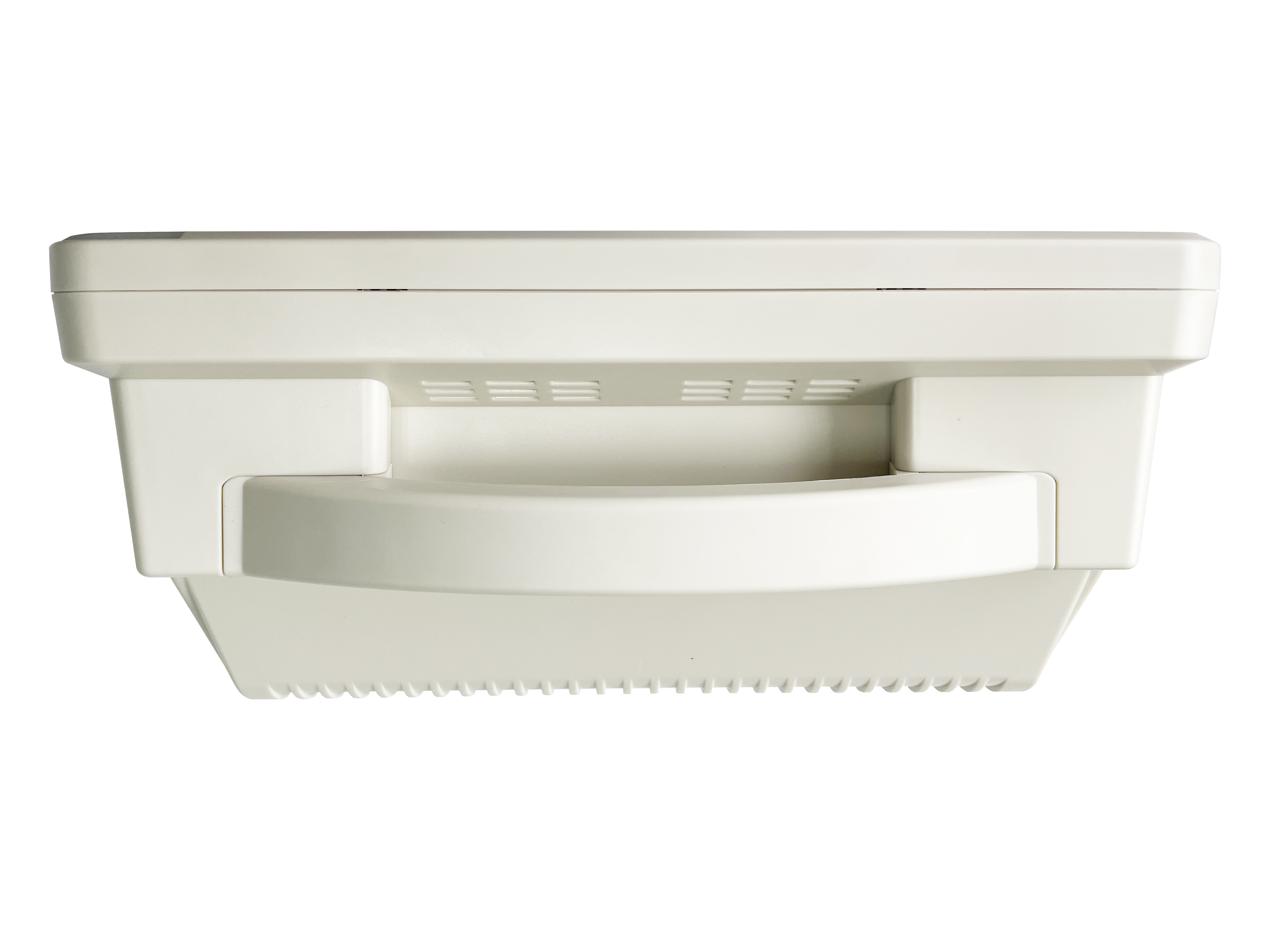

PM12B Multi-Parameter Patient Monitor

Features

• Touch-screen for easy operation
• 12.1 inch high resolution color TFT display
• USB interfaces support easy software upgrade and data transfer
• Compatible with Central Monitoring System (CMS)
• Three Working Modes: Monitoring, Surgery and Diagnosis.
• Simple and friendly operating display interface.
• Multi-display modes suitable for different applications:

Standard Interface, Large font, ECG Standard Full Display, OXY , Trend Table, BP Trend.

• Built-in high capacity battery up to 3 hours of continuous work
• VGA output for external display

Technique Specification

ECG

• Lead Mode: 5 Leads (I, II, III, AVR, AVL,AVF, V)
• Gain: ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV
• Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)

Resolution: 1 BPM

Accuracy: ±1%

Sensitivity >200 uV(Peak to peak)

• ST measurement range: -2.0 ~ +2.0 mV

Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater

Other Range: unspecified

• Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
• Bandwidth:
  • Diagnostic: 0.05~130 Hz
  • Monitor: 0.5~40 Hz
  • Surgery: 1~20 Hz

SPO2

• Measuring Range: 0 ~ 100 %
• Resolution: 1%
• Accuracy: 70% ~ 100% (±2 %)
• Pulse Rate: 20-250 BPM
• Resolution: 1 BPM
• Accuracy: ±3 BPM

NIBP

• Method: Oscillometry
• Measure mode: Manual, Auto, STAT
• Unit: mmHg, kPa
• Measure and alarm range:
  • Adult Mode
    • SYS    40 ~ 280 mmHg
    • DIA      10 ~ 225 mmHg
    • MEAN 20 ~ 240 mmHg
  • Pediatric Mode
    • SYS  40 ~ 220 mmHg
    • DIA  10 ~ 160 mmHg
    • MEAN  20 ~ 170 mmHg
  • Neonatal Mode
    • SYS    40 ~ 135 mmHg
    • DIA      10 ~ 100 mmHg
    • MEAN  20 ~ 110 mmHg
• Resolution: 1mmHg
• Accuracy: ±5mmHg

RESP

• Method: Impedance between RA-LL or RALA
• Measurement Range:

Adult: 10 ~ 120 BrPM

Neonatal / Pediatric: 7 ~ 150 BrPM

• Resolution: 1 BrPM
• Accuracy: ±2 BrPM

TEMP

• Measure and Alarm Range: 0 ~ 50 °C
• Resolution: 0.1°C
• Accuracy: ±0.1°C

Standard Parameters:

ECG, RESP, TEMP, NIBP, SPO2, PR

Optinal Parameters:

1. Recorder ( Printer)
2. Central monitoring system
3. Dual IBP
4. Etco2
5. 12-lead ECG;
6. Nellcor SpO2;
7. Sun Tech NIBP.

Standard Configuration:

Packing:

• Single package size: 37*28*36cm
• Single gross weight: 4.5 KG
• 4 unit per carton, package size: 58*39*75cm, total gross weight 20 KG
