Product details

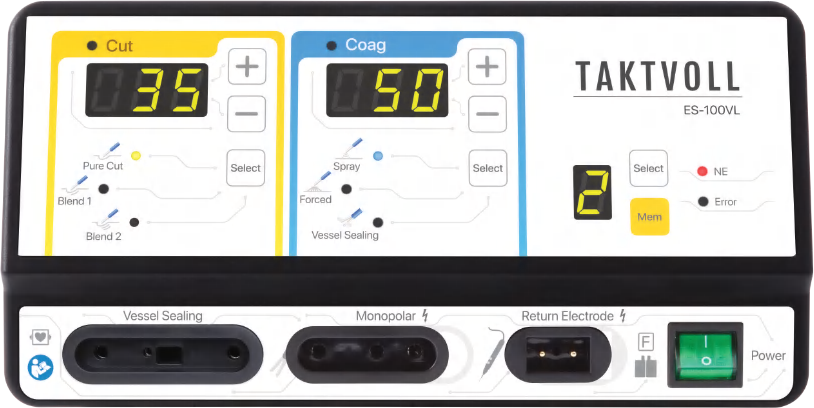

Capable of most monopolar and bipolar surgical procedures and packed withdependable safety features, the ES-100VL satisfies the veterinarian’s demands with precision, safety, and reliability.
Main Feature
– 3 Monopolar Cut: Pure Cut, Blend 1. Blend 2
– 2 Coag: Spray, Forced,
– 1 Bipolar Output: Vessel Sealing(Provide exceptional coagulation and transection of vessels up to 7mm in diameter.)
– CQM Contact Quality Monitoring System
– Electrosurgical Pens and Foot Switch Control
– Recently Mode, Power and Other Parameters
– Quick Adjustment of Power and Volume
– Cut and Coag in an Intermittent Manner
Product Specifications
|
Mode |
Max Output Power(W) |
Load Impedance(Ω) |
Modulation Frequency (kHz) |
Max Output Voltage (V) |
Crest Factor |
||
|
Monopolar |
Cut |
Pure Cut |
100 |
500 |
-- |
1300 |
1.8 |
|
Blend 1 |
100 |
500 |
20 |
1400 |
2.0 |
||
|
Blend 2 |
100 |
500 |
20 |
1300 |
2.0 |
||
|
Coag |
Spray |
90 |
500 |
12-24 |
4800 |
6.3 |
|
|
Forced |
60 |
500 |
25 |
4800 |
6.2 |
||
|
Vessel Sealing |
-- |
100 |
20 |
700 |
1.9 |
||

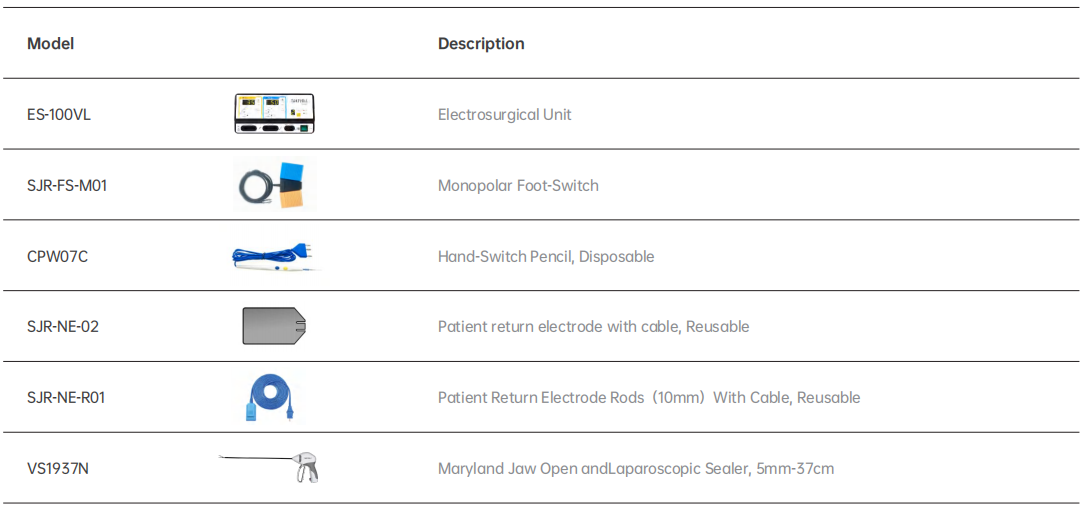

Ordering Information
