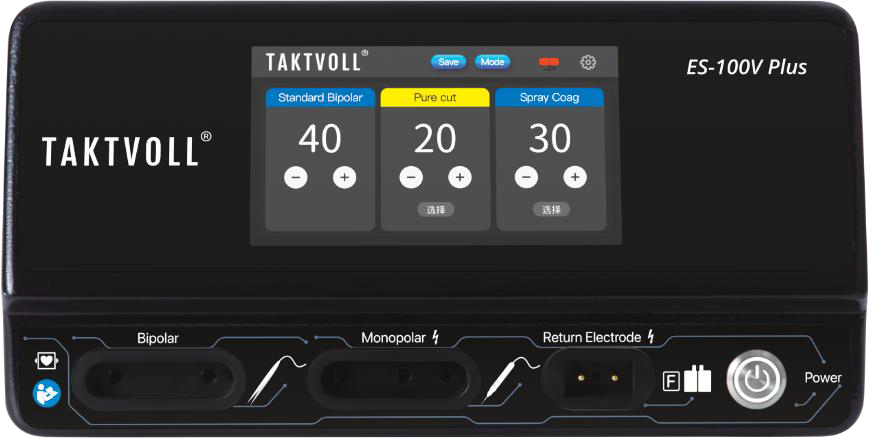

NEW PRODUCT! ES-100V PLUS LCD Touchscreen Electrosurgical Unit The ES-100V Plus satisfies the veterinarian’s demands with precision, safety, and reliability.
Main Feature
– Glass full version design, which is extremely tense and beautiful
– Color touch screen operation panel, flexible and easy to operate
– 6 Working modes(5 monopolar working modes, and 1 bipolar working modes)
– Electrosurgical Pens and Foot Switch Control
– Recently Mode, Power and Other Parameters
– Quick Adjustment of Power
– Cut and Coag in an Intermittent Manner
Product Specifications
|
Mode |
Max Output Power(W) |
Load Impedance(Ω) |
Modulation Frequency (kHz) |
Max Output Voltage (V) |
Crest Factor |
||
|
Monopolar |
Cut |
Pure Cut |
100 |
500 |
-- |
1300 |
1.8 |
|
Blend 1 |
100 |
500 |
20 |
1400 |
2.0 |
||
|
Blend 2 |
100 |
500 |
20 |
1300 |
2.0 |
||
|
Coag |
Spray |
90 |
500 |
12-24 |
4800 |
6.3 |
|
|
Forced |
60 |
500 |
25 |
4800 |
6.2 |
||
|
Bipolar |
Standard |
60 |
100 |
20 |
700 |
1.9 |
|

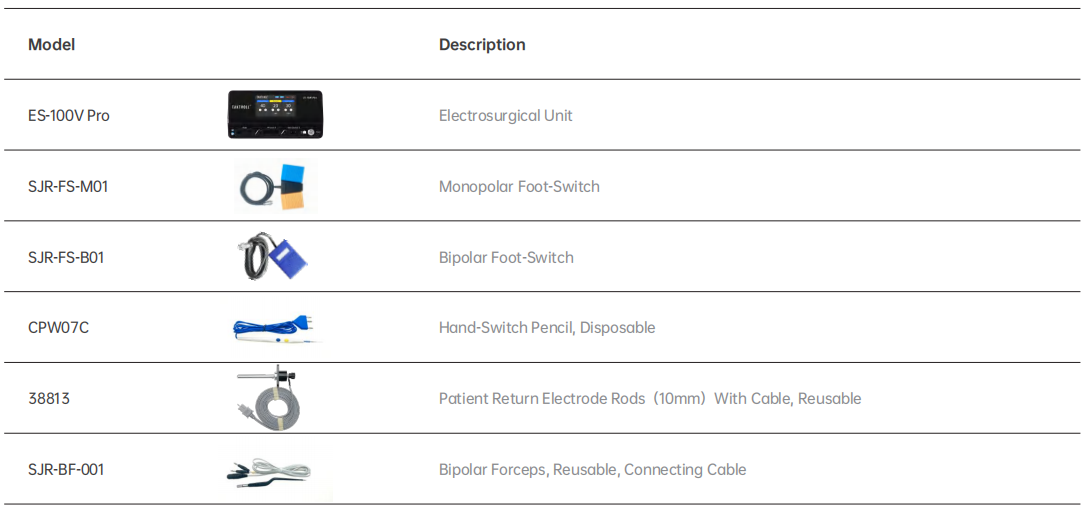

Ordering Information
