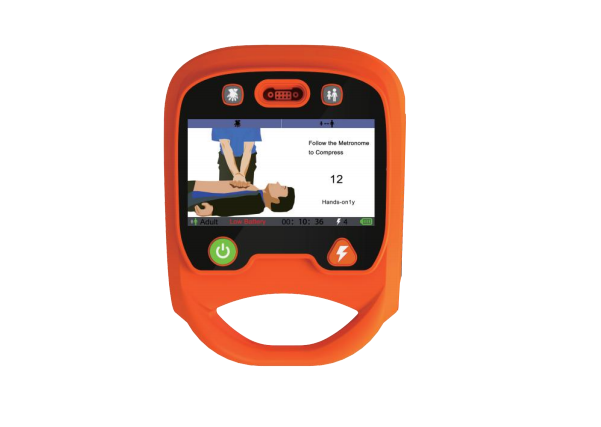

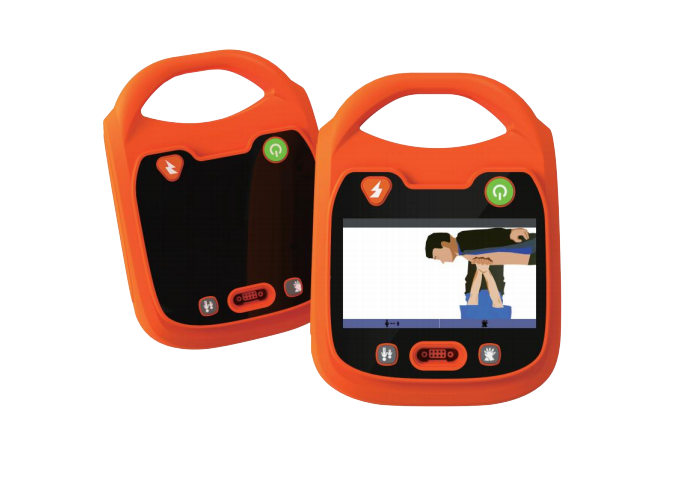

Automatic External Defibrillator AED 100

Features

• Easy operate: simple design, combined with voice prompts, allowing non professionals to quick operation.
• Automatically analyze the patient's heart rhythm and determine whether electrical shock is needed.
• Quickly provide electrical shock, or defbrillation to re-establish an effective heart rhythm.
• Convenient to carry: small size and light weight.
• Reduce the risk of delayed treatment caused by waiting for emergency personnel.
• Significantly improve the survival rate of patients with cardiac arrest.
• Wide applicability: suitable for cardiac arrest caused by various reasons,such as ventricular fibrillation.

Technique Specification

• Output:Biphasic Truncated exponential
• Energy Sequence:150J、150J、200J
• Charge Time: 8 sec. to 150J; 10 sec. to 200J(New battery)
• Analysis Time:9 sec
• The maximum time from the initiation of rhythm analy-sis to readiness for discharge with a new battery: Less than 20seconds
• The maximum time from the initiation of rhythm analy-sis to readiness for discharge after 6 shocks: Less than 25seconds
• The maximum time from initially switching power on toreadiness for discharge: Less than 30 seconds
• Output Energy Accuracy: +10% into any impedance from 25Ω to 175Ω
• The Maximum Voltage: 1200V+50V
• Output disabled when the patient impedance is outsidelimits: 20Ω  to 200Ω
