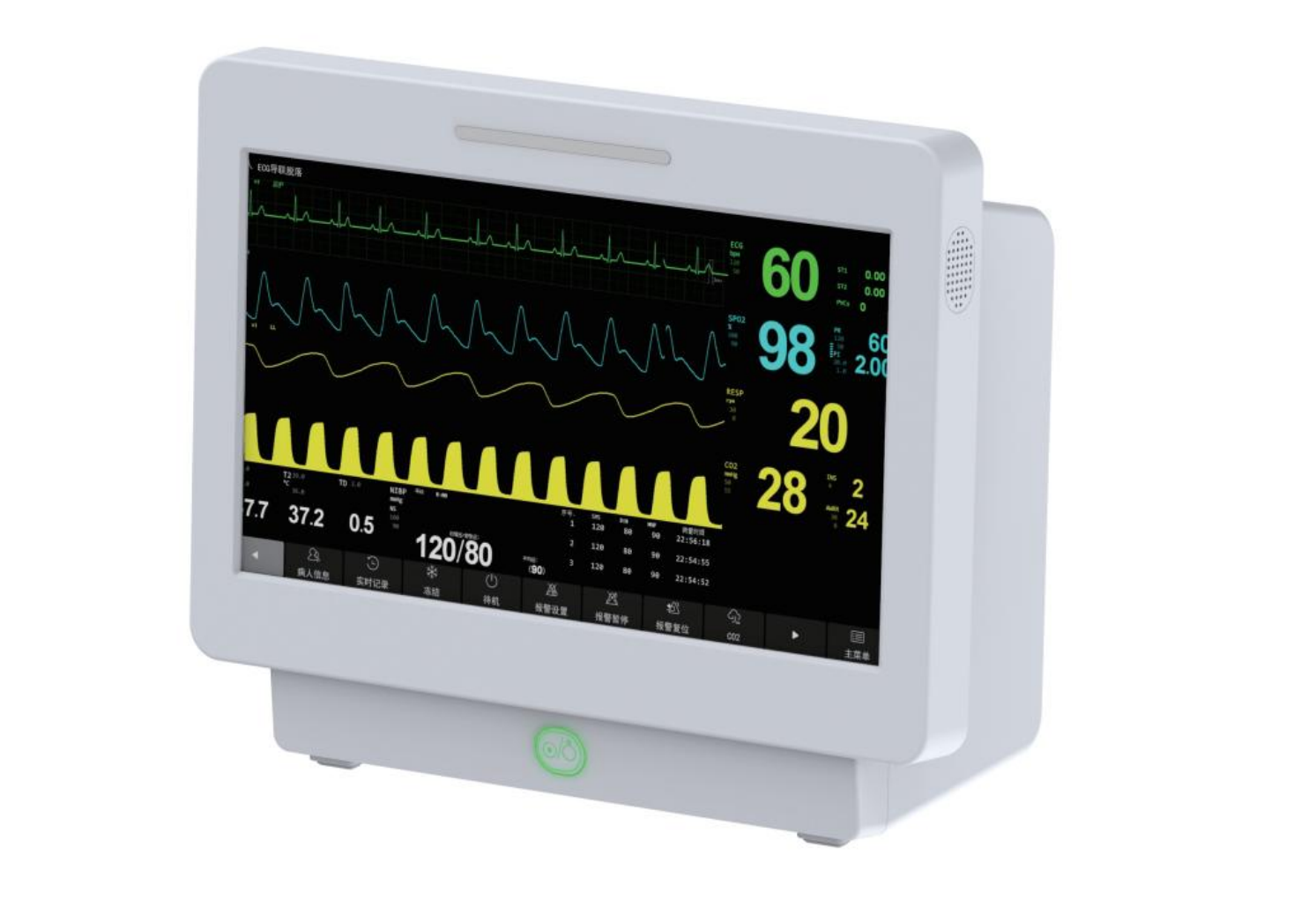

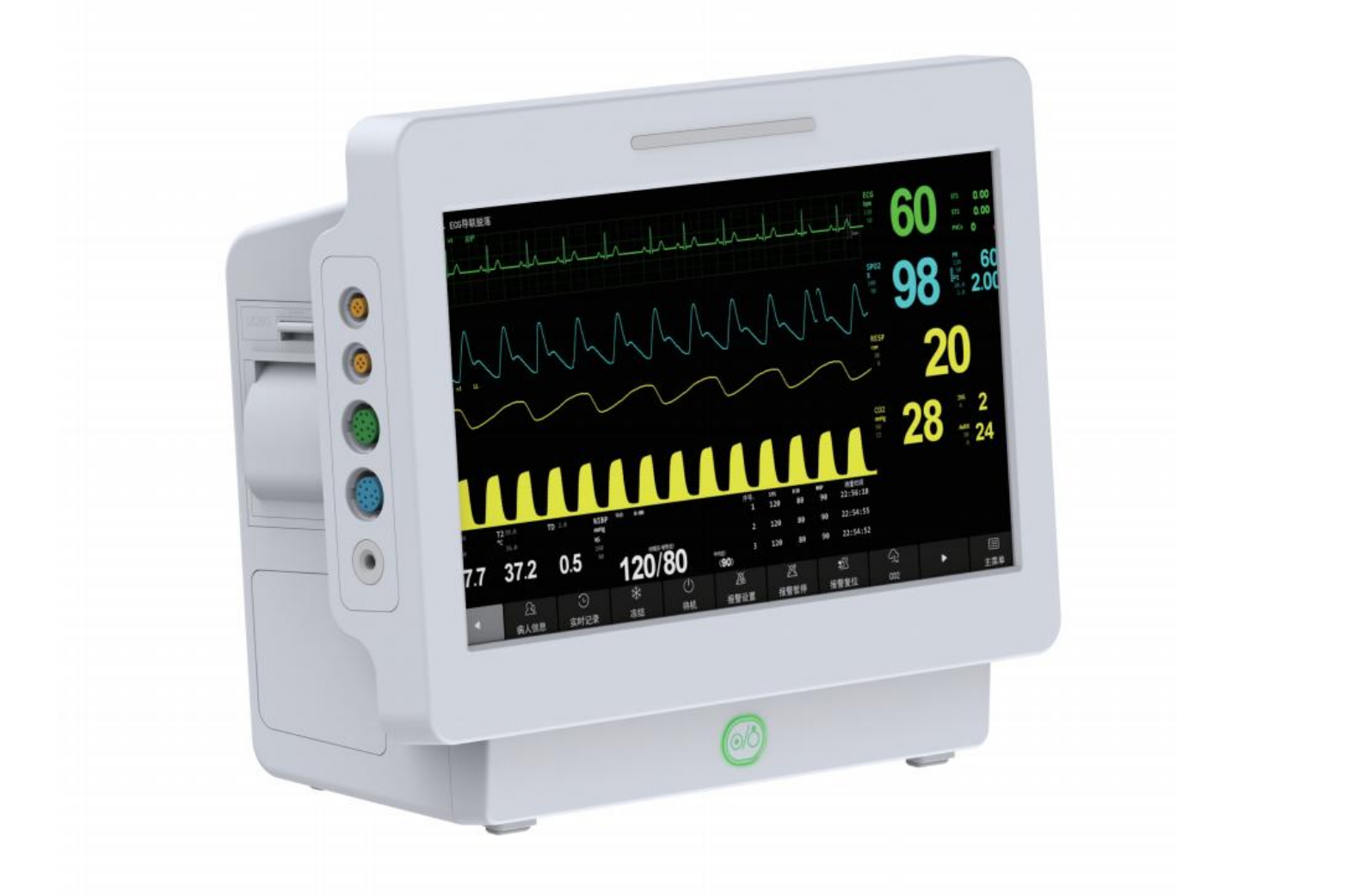

Patient monitor CPM10A

Product description

• Touch-screen for easy operation
• 11.6/13.3/15.6 inch high resolution color TFT display
• USB interfaces support easy software upgrade and data
• transfer
• wire and wireless compatible with Central Monitoring
• System (CMS)
• 3/5/12-lead (Automatic 3/5/12-lead recognition)
• Multi-display modes suitable for different applications:
• Standard Interface, Large font, ECG Standard Full Display,
• OXY , Trend Table
• Battery > 3 hours
• Anti-electrosurgical interference

ECG

Sensitivity >200 uV(Peak to peak)

ST measurement range: -2.0 ~ +2.0 mV

Accuracy: -0.8mV~+0.8mV: ±0.02mV or

±10%, which is greater

Other Range: unspecified

Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

Diagnostic: 0.05~130 Hz

Monitor: 0.5~40 Hz

Surgery: 1~20 Hz

NIBP

Measure and alarm range:

Adult Mode

SYS 30 ~ 290 mmHg

DIA 10 ~ 250 mmHg

MEAN 15 ~ 260 mmHg

Pediatric Mode

SYS 30 ~ 240 mmHg

DIA 10 ~ 200 mmHg

MEAN 15 ~ 215 mmHg

Neonatal Mode

SYS 30 ~ 140 mmHg

DIA 10 ~ 115 mmHg

MEAN 15 ~ 125 mmHg

Resolution: 1mmHg

Accuracy: ±5mmHg

SPO2

Measuring Range: 0 ~ 100 %

Resolution: 1%

Accuracy: 70% ~ 100% (±2 %)

Pulse Rate: 20~250 BPM

Resolution: 1 BPM

Accuracy: ±3 BPM

RESP

Method: Impedance between

RA-LL or RA-LA

Measurement Range:

Adult: 10 ~ 120 Br/PM

Neonatal / Pediatric: 7 ~ 150

Br/PM

Resolution: 1 Br/PM

Accuracy: ±2 Br/PM

TEMP

Measure and Alarm Range: 0℃ ~ 50℃

Resolution: 0.1℃

Accuracy: ±0.1℃
