Product details
Product description

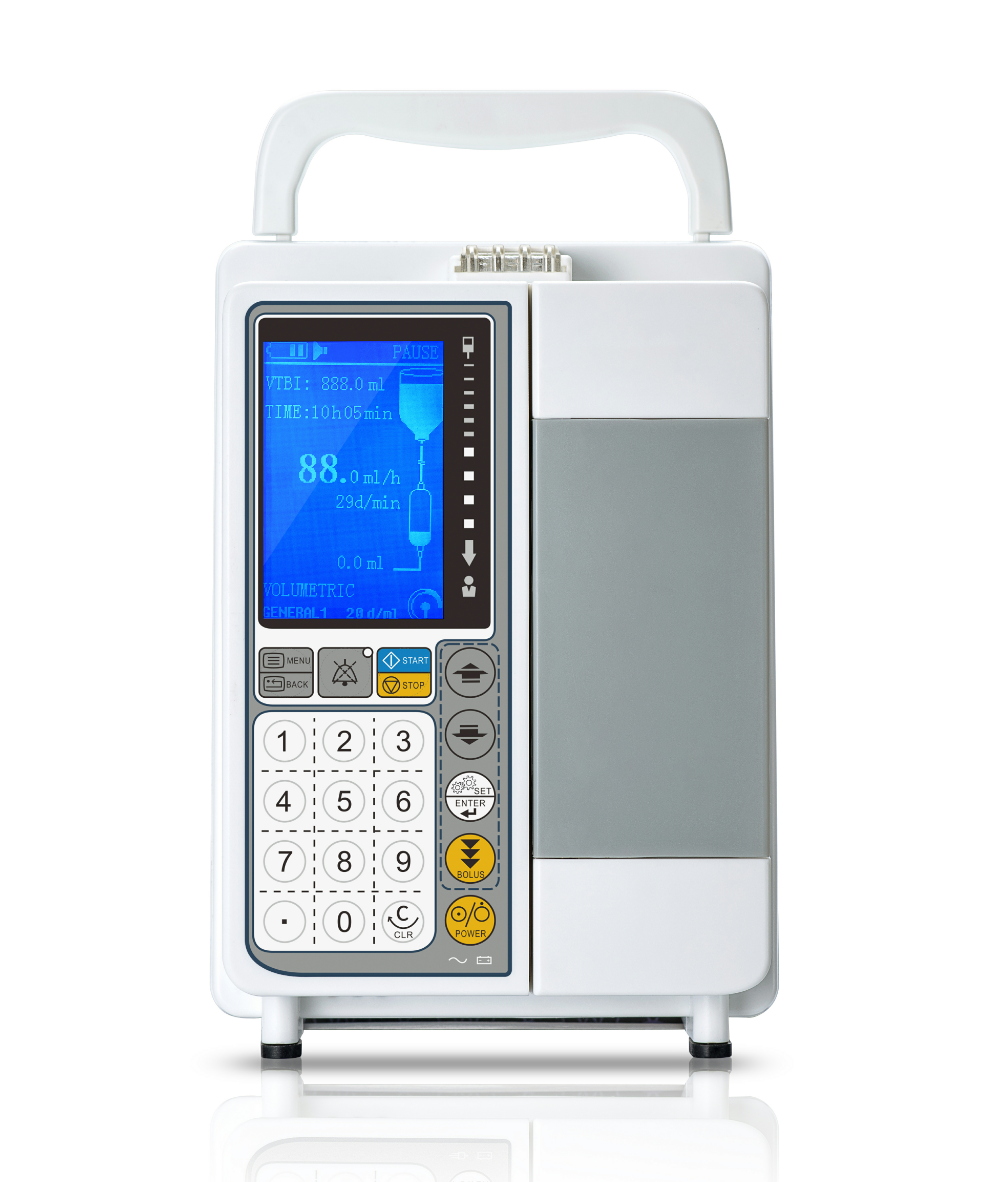

Infusion Pump
Numeric Keypad
Accurate Infusion
Strong Battery Backup
More User Friendly
Infusion Pump Features
Infusion Pump is with the classic vertical design. The software compensation error is within±5%. It is widely used in ICU, NICU, pediatrics, internal medicine, surgery, obstetrics and gynecology, oncology, emergency department and outpatient infusion room. Double CPU and numeric keypad make it safe and more user friendly.
·Adjustable Levels Setting
10 levels setting for occlusion,air bubble and alarm volume
·Strong Battery Backup
3000mAh battery and backuptime more than 10hrs.
·User Friendly
Big Screen and numeric keypad
·Dual Occlusion Sensor
Upand down occlusion sensor with DPS system
·Infusion Mode
Volume mode,drip mode,time mode
HF-710B Infusion Pump -Neutral | Specification |
Infusion Mode | Volume Mode,Drip Mode,Time Mode,Drug Mode |
Rate Unit | ml/h,volume/time,d/min |
IV Sets | Standard single use IV sets(10,15,20,60d/mL, with diameter 3.4～4.5mm) |
Flow Rate | 1.0ml/h~1200ml/h;1.0d/min~400d/min |
Increment | 1.0-99.9ml/h in 0.1ml/h step |
Deviation | Flow Rate:≤5%(after calibration) |
VTBI | 0.1～9999.9ml |
Total Volume | 0.0～9999.9ml |
Time | 1min～99h00min |
Purge Rate | 600ml/h,display purge volume |
KVO | 1.0ml/h~5.0ml/h,adjustable |
Keypad | Numeric keypad |
BOLUS | Bolus function available,flow rate adjustable |
Night Mode | Screen to be dim automatically in 5mins after standby time expired. |
Occlusion pressure detector | Upstream and downstream pressure detection, 40KPa～130KPa,10 levels adjustable with dynamic pressure value display |
Air Bubble Detector | Ultrasonic detection,≥50ul,Single bubble |
Volume | 10 levels adjustable |
Motor Anti-reverse Function | Anti-reverse function to prevent upstream |
IV Set | Open system,accept different IV brands after |
Self-Testing | Self-Testing before startup and during infusion |
Audio Visual Alarm | Air bubble,upstream occlusion,downstream occlusion,door open,infusion finish,standby time expired,battery low,battery empty,battery disengaged,ACPower disengaged,motor error,pump error,pressure sensor error,parameter error,drip sensor error,dripsensordisengaged,bottle empty,system error |
Screen | 3.2inch brightness LCD |
Power Supply | AC Power:100V～240V,50Hz/60Hz,≤25VA |
Battery | Rechargeable Lithium battery,DC11.1V,3000mAh;operating time:≥10h @25ml/h,displaying remaining battery |
Operation | Temperature:+5℃~+40℃,Humidity:20%~ |
Transport & | Temperature:-20℃~+55℃,Humidity: |
Classification | Type CF,Clas II,IPX3 |
Dimension | 145mm×150mm×200mm;Weight:1.7kg |
