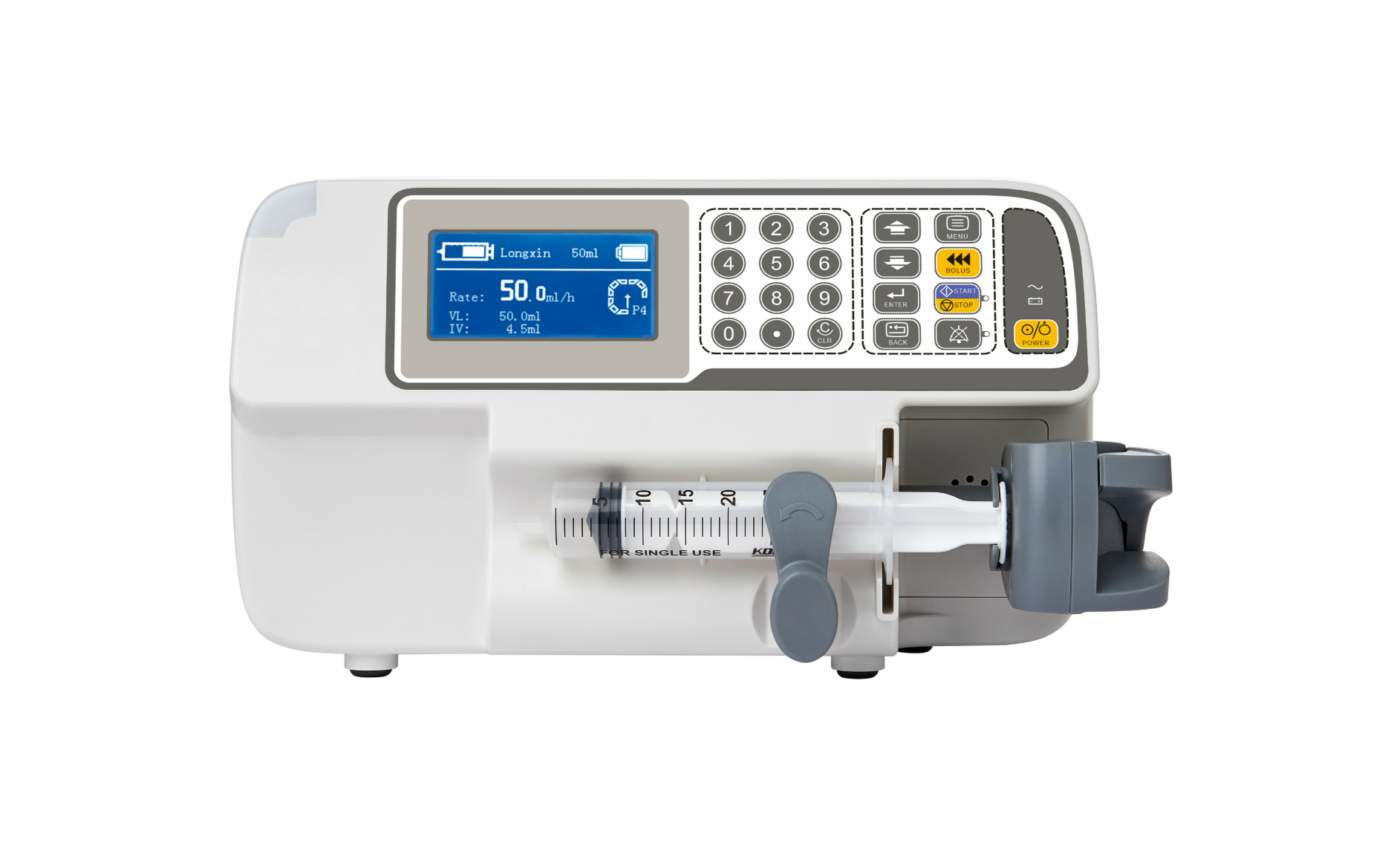

SYRINGE PUMP HF-610E

SYRINGE PUMP HF-610E

Specification

Injection Mode

Constant rate,time/volume mode,drug weight mode,bolus mode

Syringe Size

5ml、10ml、20ml、30ml、50/60ml,auto-recognized

Flow Rate

5ml:0.1ml/h-90.0ml/h
10ml:0.1ml/h-400.0ml/h
20ml:0.1ml/h-600.0ml/h
30ml:0.1ml/h-900.0ml/h
50/60ml:0.10ml/h-1800.0ml/h

Increment

1.0-99.9ml/h:0.1ml/h
100-1800.00ml/h:1ml/h

Preset Time

5s～99hr

Accuracy

≤±2%

Preset Volume(VTBI)

0.1-9999.9ml&empty

Accumulated Volume

0.0-9999.9ml

Purge Rate

5ml:90.0ml/h         10ml:400.0ml/h
20ml:600.0ml/h      30ml:900.0ml/h
50ml:1800.0ml/h

Bolus Rate

5ml:0.1ml/h-90.0ml/h
10ml:0.1ml/h-400.0ml/h
20ml:0.1ml/h-600.0ml/h
30ml:0.1ml/h-900.00ml/h
50ml:0.1ml/h-1800.0ml/h

KVO

1-5.0ml/h adjustable

Occlusion Pressure

8 level adjustable,10Kpa-150Kpa,dynamically pressure value display.

Alarm

Finished,near finished,near empty,empty, occlusion,syringe disconnected,no operation,low battery,battery lost,battery ran out,AC power lost,,finished!KVO.,device errorl

Syringe Management

Preset 6 syringe brands,can add or edit the brand,accept different brands aftercalibration

Display

3-inch LED display

RESET function

Available

Power Supply

AC Power:100V-240V,50/60Hz,≤45W

Battery

Rechargeable Lithium battery,DC11.1V,2200mAh;
operating time:≥7h @5ml/h

Alarm Voice

8 levels adjustable.

Operation
Environment

+5℃-+40℃,Relative humidity:20%-90%;
Atmospheric pressure:50-106 Kpa

Storage
Environment

-20℃-+55℃,Relative humidity:10%-95%;
Atmospheric pressure:50-106 Kpa

Classification

ClassII,Type CF;IPX4

Dimension

Size:275mm×145mm×160mm,Weight:1.7kg

Weight

Net Weight:≤2.5kg

Other Function

Double CPU,Password function,90°ratable IV pole,numeric keypad,sleeping function

Application

Intravenous injection
